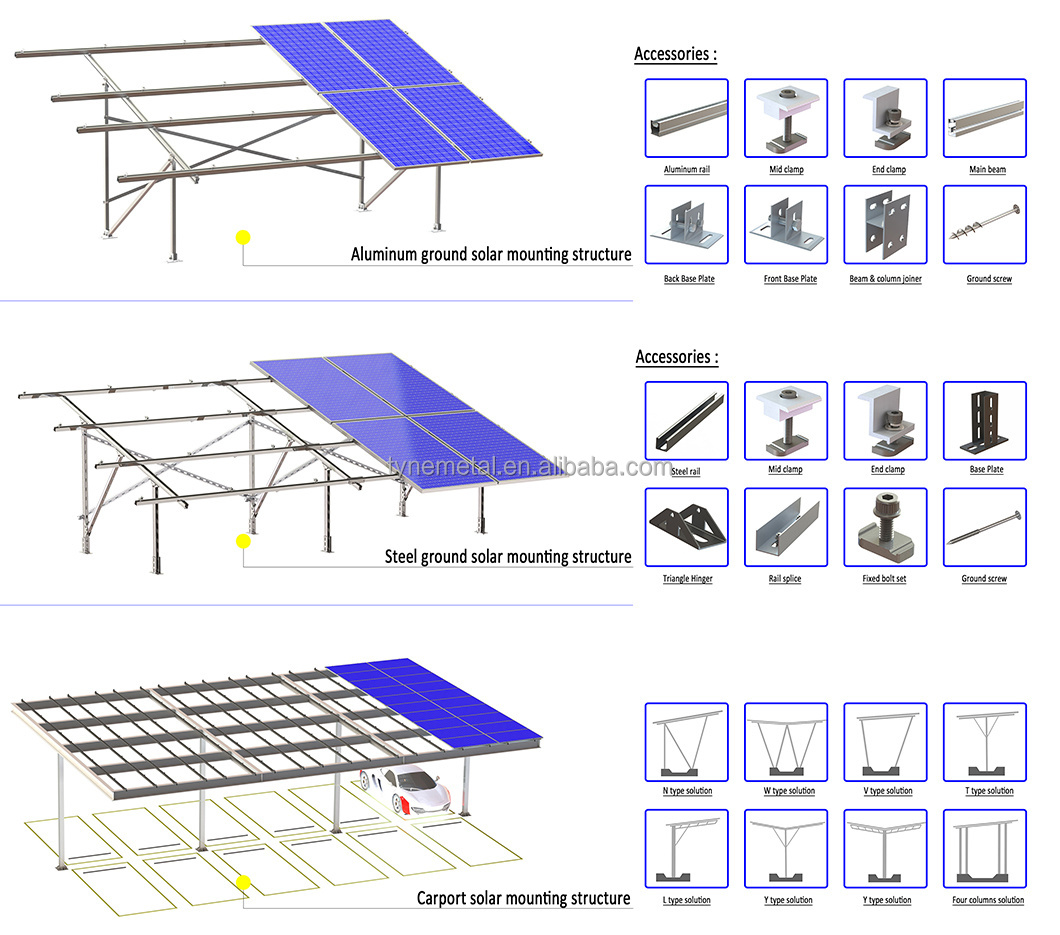

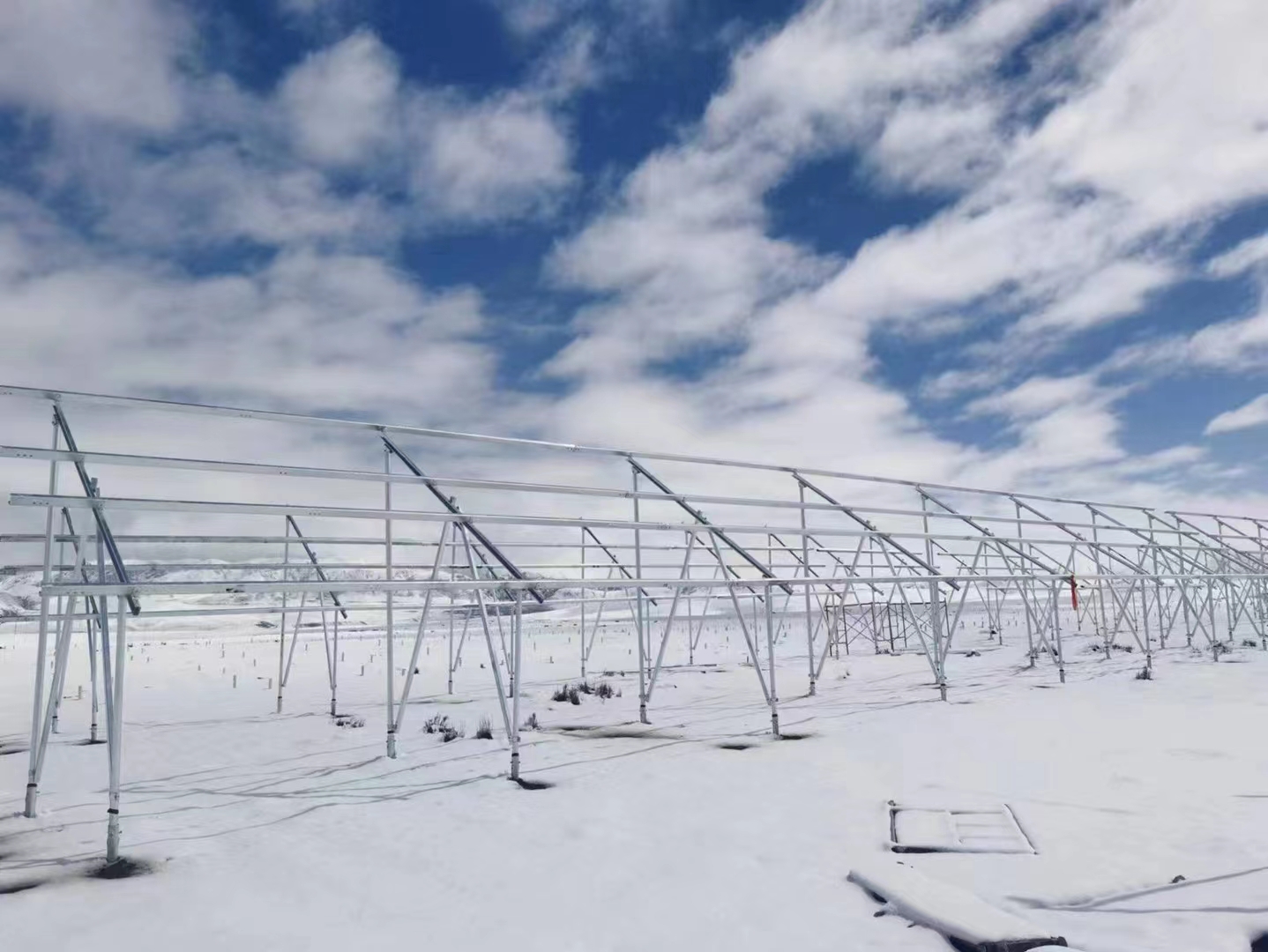

Solar ground mounting system is manufactured in zinc-mg-aluminum steel plates and can be used ina variety of conditions using
concrete foundations and ground screws for different panel arrays. Using zincmagnesium aluminum steel structure, this solar mount
type has a huge market advantage.
1. 100% high strength zinc magnesium aluminum steel plate, good corrosionresistance, but also automatic repair.
2. High competitiveness on material cost.
3. Easy and fast installation with unique design.
4. Good processing performance, environmental protection and long service life.
5. The coating weight is less, and the simplified process eliminates the hotdip plating after forming.

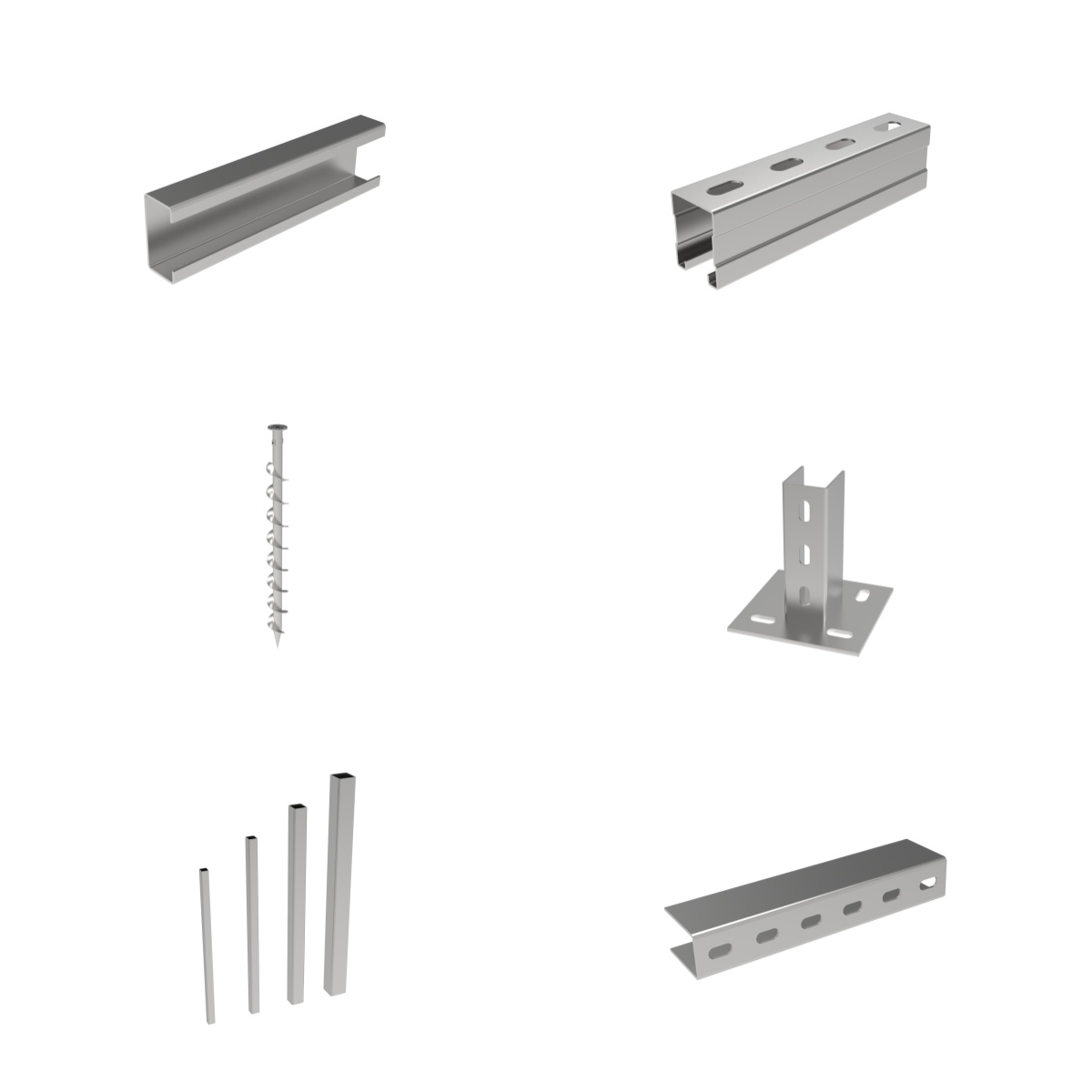

Solar panel bracket is a standardizedstructural system used in the construction and electrical industries, mainlyfor light weight structural support.
Material | Pre-galvanized /Hot dip galvanized/ Stainless steel/Zinc Aluminum Magnesium |
Size | 41*21mm/41*41mm/41*62mm/41*82mm |
Thickness | 1.0mm/1.5mm/2.0mm/2.5mm/2.7mm/customized |
Length | 3m/6m/customized |
Install Site | Open Terrain |
Tilt Angle | Depending on actual needs |
Max Snow Load | 1.5KN/m² |
Max Wind Speed | 42m/s |
Module Orientation | Landscape or Portrait |
Foundation Type | Concrete Base or Screw Pile |
Material | Pre Galvanized/Hot Dip Galvanized/Stainless Steel/ Zinc-Aluminum-Magnesium |
Warranty | 12 years quality guaranty |
High-performance aluminum alloy fittingsdesigned for durability, lightweight strength, and corrosion resistance. Idealfor
automotive, aerospace, construction, and industrial applications.Precision-engineered for excellent mechanical properties,
thermal conductivity, and easy machining. Available in various grades (e.g.,6061, 7075) with optional anodizing or surface
treatments for enhanced wear resistance and aesthetics. Custom specificationsand sizes upon request。
Application | Constructure, Decoration | Material | Aluminum Alloy |
Type | Solar Panel Frame Bracket | ProductItems | Photovoltaic Solar Panel Frame Bracket |
Items | C steel | Surface Treatment | Mill Finish / Anodizing / Powder Coating / Maching |
Color Option | Customized | Procesing Service | Cutting |
Main Market | Europe, South Africa, Asia and So on | Thickness | Customized |
Packing | Regular Packing / Customize | Transport Package | Customized |
