Hot Dip Galvanized 90° Corner Steel

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Spec Customized
Material Carton Steel
Brand TYNE
tdsteel2000@vip.126.com
Detail

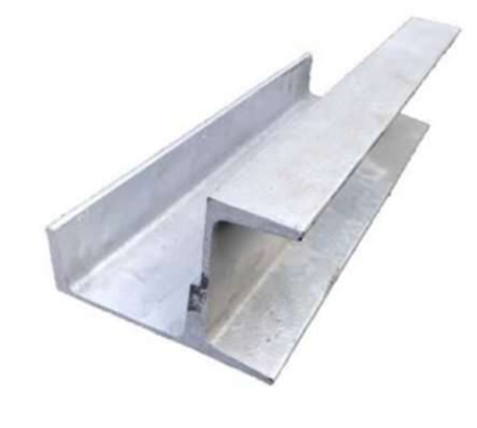

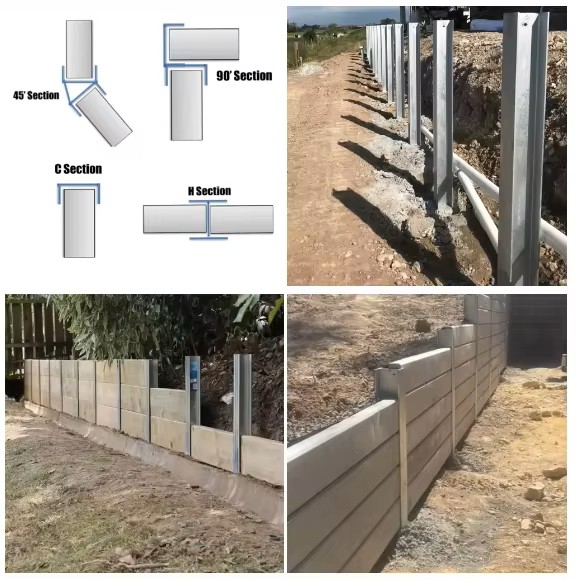

These galvanised steel 90° corner posts are a great solution for creating strong and durable corners in your retaining walls or fencing projects. Designed to save time and effort, these prefabricated posts are engineered precisely to provide a strong retaining wall for tradesmen, DIY landscapers, and gardeners.

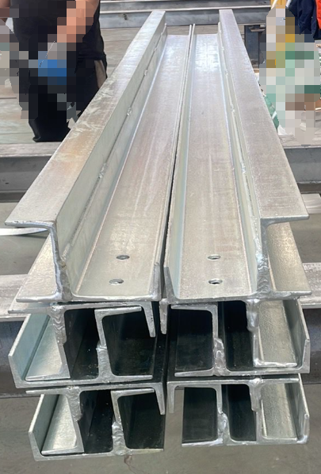

   Each corner post is welded together and is hot-dipped galvanised for maximum durability, corrosion resistance, and longevity. With pre-drilled holes for easy attachment using Fence Brackets, these posts are compatible with a range of fencing options, including Colorbond and timber.

UNIVERSAL BEAMS
Specification: AS/NZS 3679.1 : 2016 –Grade 300
Size Range: 150UB–610UB
Length Range: 900mm–12000mm(Cut to and lengths as clients requires)
Hot dipped galvanized:600g/㎡(85μm)
UNIVERSAL COLUMNS
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100UC–310UC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires)
Hot dipped galvanized:600g/㎡(85μm)
PARALLEL FLANGE CHANNELS
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 75PFC–380PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires)
Hot dipped galvanized:600g/㎡(85μm)

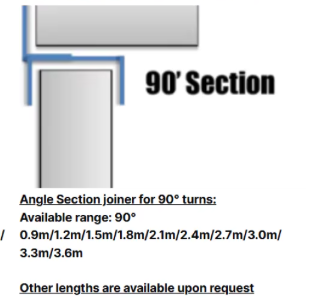

Retaining wall steel 90 Degree Corner posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires)
Hot dipped galvanized:600g/㎡(85μm)
Retaining wall steel 45 Degree Corner posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires)
Hot dipped galvanized:600g/㎡(85μm)


Tolerance performance standard
AS/NZS3679.1:2010
Name
Type
Specifications
(kg/m)
PFC
PFC75*40
75*40*3.8*6.1
5.9
PFC
PFC100*50
100*50*4.2*6.7
8.31
PFC
PFC125*65
125*65*4.7*7.5
11.9
PFC
PFC150*75
150*75*6*9.5
17.7
PFC
PFC200*75
200*75*6*12
22.9
PFC
PFC230*75
230*75*6.5*12
25.1
PFC
PFC250*90
250*90*8*15
35.5
PFC
PFC300*90
300*90*8*16
40.1
PFC
PFC380*100
380*100*10*17.5
55.2
