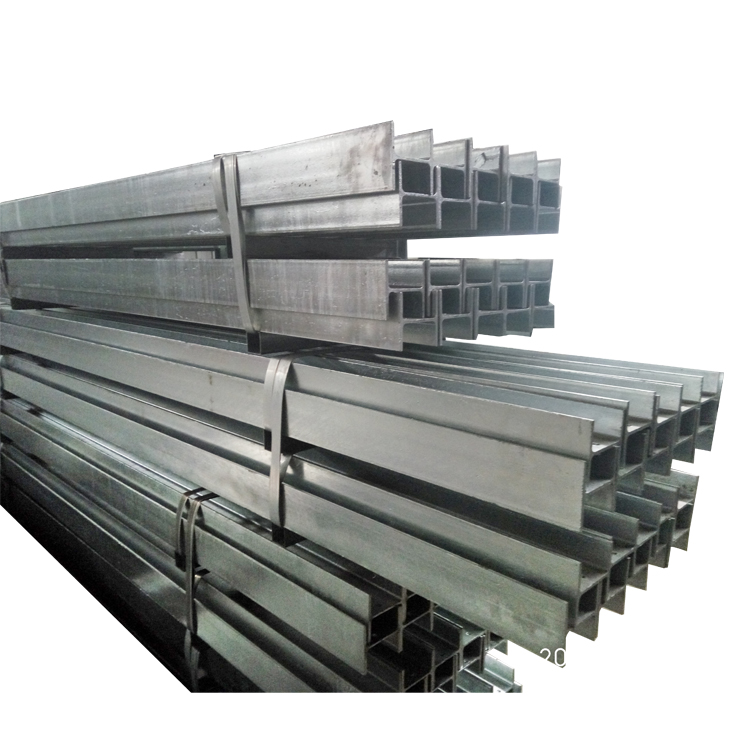

European standard H-beam (HEA series)

HEA is a kind ofEuropean standard wide flange H-beam, which belongs to the "HE" series (HeavyEuropean) in the European standard EN 10034, where "HEA" stands forlightwide flange H-beam , which is commonlyused in construction, bridges, mechanical structures, etc

• Naming rule: HEA followed by a number indicates   the cross-sectional     height (unit: mm),such as HEA100 means the height is 100 mm

• Typical     specification range: HEA100 to HEA1000

• Common parameters(take HEA200 as an example):

• Section size: 190 mm (flange width) × 200 mm (height) × 6.5 mm      (web thickness) × 10.0 mm (flange thickness)

• Theoretical weight: approx. 42.3 kg/m

• Material grade:     S235, S275, S355, S460, etc. (corresponding to different yield strengths).

• Standard:EN 10034:1993

Specifications

Our product range features a comprehensive selection of specifications. Whether you need a small - sized H Beam for a delicate project or a large - sized one for heavy - duty applications, we can meet your needs. We ensure that all our products are of high quality and precision.

Additional Services

In addition to providing standard Hot Rolled H Beams, we also offer a range of value - added services:

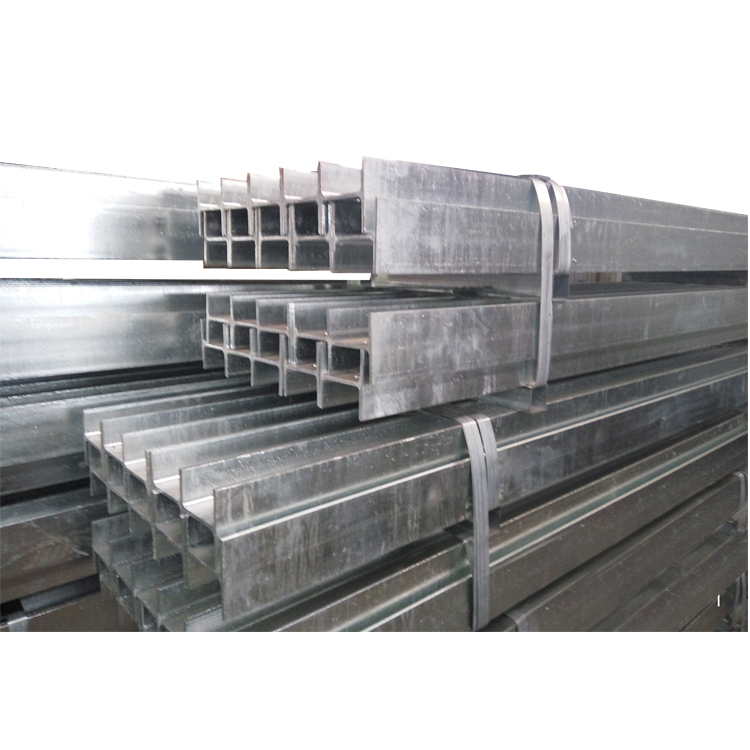

• Galvanizing Service: We can provide galvanizing treatment for the H Beams to enhance their corrosion resistance. This is especially useful for applications in harsh environments.
• Punching Service: We can punch holes in the H Beams according to your design requirements, which saves you time and effort in the subsequent installation process.
• Cutting Service: Our cutting service allows you to get the H Beams in the exact lengths you need, reducing waste and improving efficiency.
