Mudrolled grates (also called vibrationgratings /rumble grid/construction site tire mud removal grates) are speciallyplaced at construction site entrances and exits, allowing wheels to roll overthem, shaking, scraping, and rolling mud from tire tread and chassisunderneath, reducing the risk of mud on the road.
1. Working Principle (How to Remove Mud)
Forced vibration + scraping: The grille is welded from angle steel or channel steel, suspended as a whole. When the wheels roll up, the angle steel repeatedly "pushes, scrapes, and shakes" the tire tread to squeeze out and shake off the mud.
Sludge leakage: Muddy that falls directly through the steel bar gaps onto the lower mud storage trough or floor, without sticking to the grate.
"Roll down": When the wheels rotate, angle steel acts like a reverse scraper, scraping mud forward or inside the tire downward without following the car.
Chassis mud rubbing: The entire grille is 15–25cm high, and the chassis of a large truck will also rub against the horizontal strips,scraping off the dirt hanging on the chassis along with it.
2. Structure (What Does It Look Like)

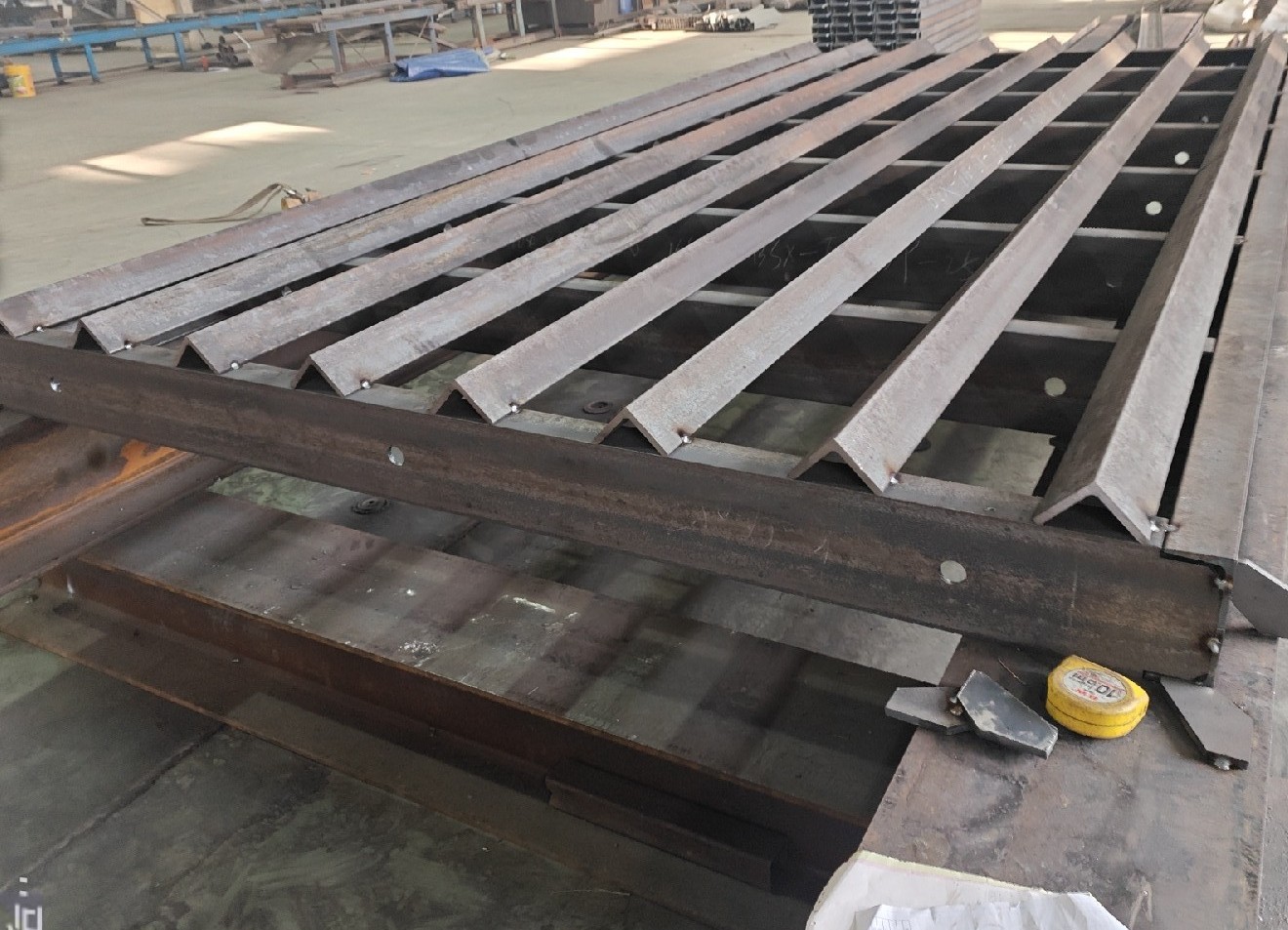

Main body: channel steel serves as the frame, with small angle steel welded on top, arranged transversely, spacing 50–80mm.
Support: The frame is 10-20cm above the ground, with the bottom open to let the mud fall down; Both ends have ramps or transition plates to facilitate vehicle access.

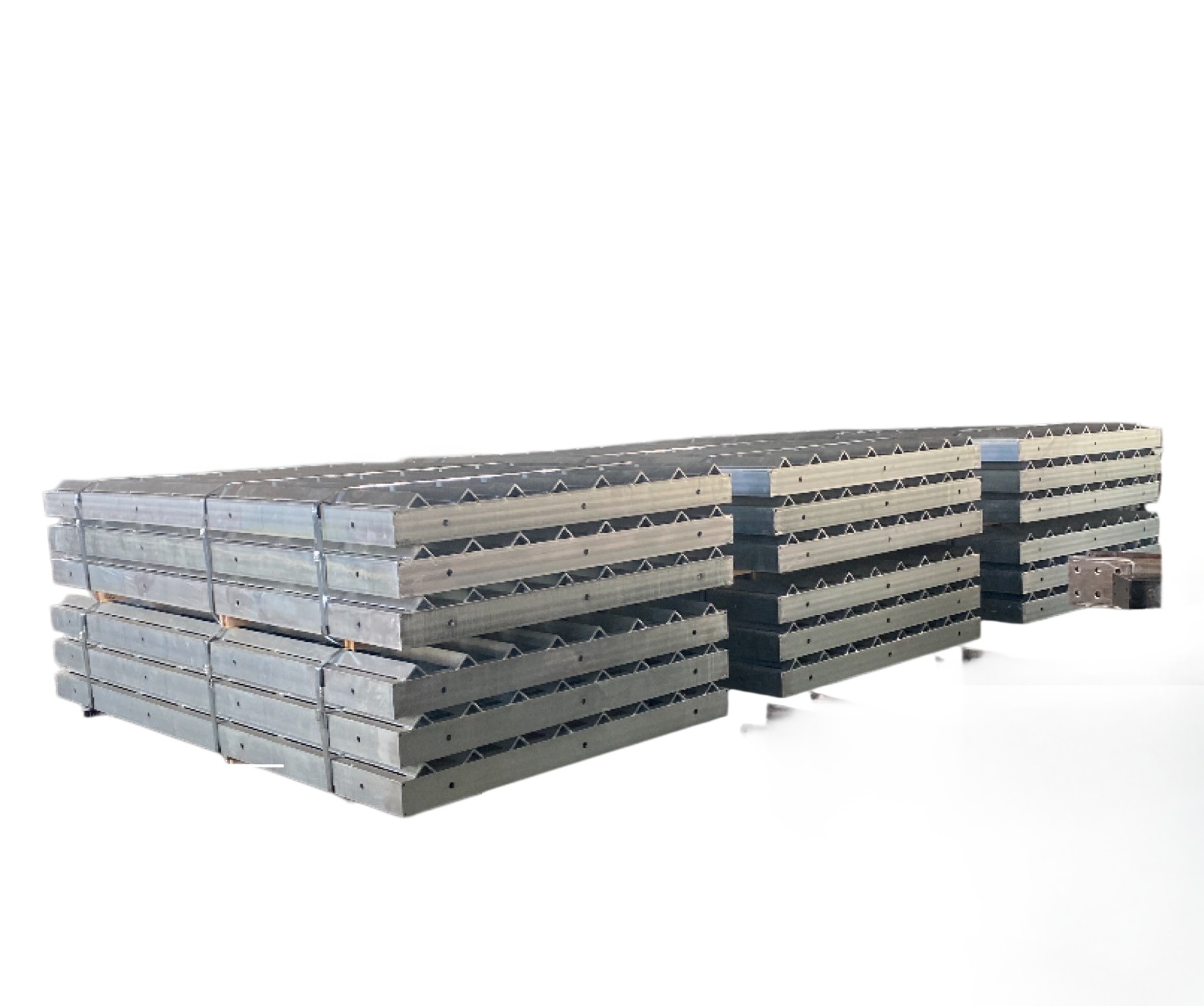

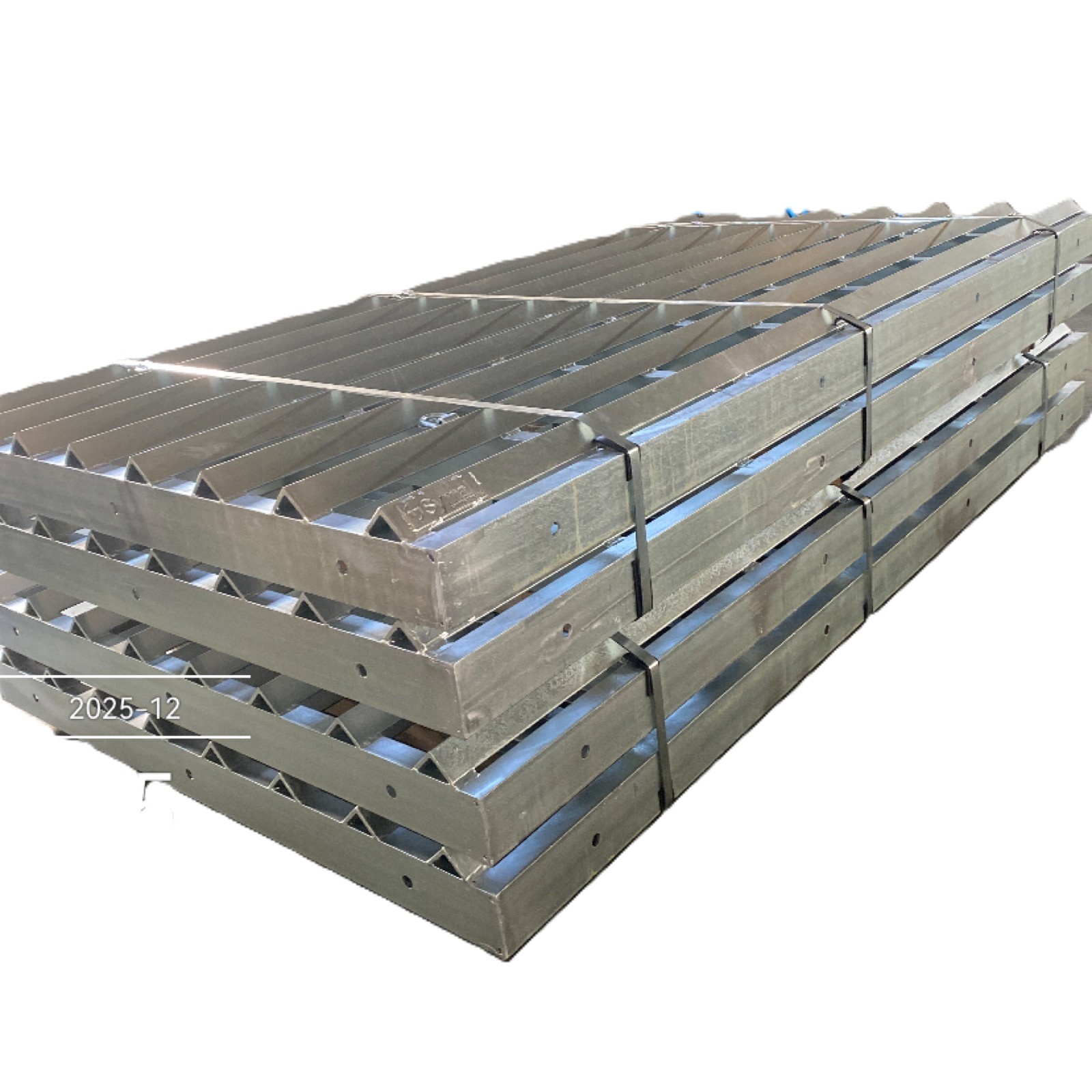

Material: Commonly welded carbon steel on site, thickness 6–10mm, load capacity ≥ 50 tons; Hot-dip galvanizing is used to prevent rust.
Dimensions: Each block is about 2.5m ×3m, multiple pieces spliced together to form a length of 6–12m (the longer it is, the cleaner the mud removal), and ≥ 4m wide (two-way lane).
3. Features (Advantages and Disadvantages)
Advantages
Good mud removal effect: Cleaning tires and chassis together saves water and is faster than just a car wash sink.
Sturdy and durable: welded carbon steel, does not deform under heavy loads, and can last 3–5 years on site.
No power or electricity: Pure mechanical, relies on the wheels' own weight and rotation to remove mud, no breakdown, and saves money.
Movable and reusable: The whole piece can be lifted away, and it can be moved and reused after changing locations at the construction site.
Simple maintenance: If there's a lot of mud underneath, just regularly clean it once with an excavator or shovel.
4. How to use (Installation + Usage +Maintenance)
Site selection: At the site exit where the ground is hardened, build platforms 6–12m long and 4m wide, with foundations that are flat and load-bearing.
Installation:
First, lay a concrete foundation or level with thick steel plates;
Assemble, weld, or bolt the grate blocks;
Sloped transition plates installed at both ends (1:5 slope);
Leave 10–20cm of clearance under the grille for easy mud removal and cleaning.
Usage: Vehicles passing at low speeds (below 5km/h), going back and forth 2–3 times is more effective; Do not brake suddenly or turn sharply to avoid damaging the vehicle.
Maintenance:
Daily: Check welds and bolts; weld or tighten promptly if loose;
Weekly: Clean the underlying mud once to prevent sealing;
Rainy season: The mud below is slippery; clear it promptly to prevent the wheels from slipping.
5. Comparison with the car wash sink
Mud Rolling Grille: fast, water-saving, durable, and movable; Suitable for heavy-duty construction sites and frequent deployments; Remove 70–80% of the soil.
Car wash sink: clean, can remove fine mud; Water-consuming, slow, and power-driven; Suitable for construction sites with high environmental requirements and minimal site exposure; Remove more than 90% of the clay.
