Patterned anti-skid board

1. Common Materials

1. Q235B (mainstream): yield ≥ 235MPa, suitable for ordinary dump     trucks and engineering vehicles, offering the best value for money

2. Q355B (Heavy-Duty Preferred): Yield ≥ 355MPa, specially     designed for excavators, mixer trucks, heavy-duty tracked equipment, and     foundation pit ramps, with stronger bending resistance

2. Standard Specifications (Common in theMarket)

1. Thickness Selection (Core)

• 12mm: Small equipment, landscaping/weak current sporadic     construction, small vehicle passage

• 16mm: Regular access to general construction site access roads     and dump trucks (most commonly used)

• 20mm: Heavy-duty trucks, pump trucks, excavator main roads,     muddy soft soil foundations (standard equipment)

• 22~25mm: Foundation pit entrance/exit, crane operation area,     long-term heavy-duty yard

2. Length and width (standard in stock)

Width: 1.5m/2m; Length: 4m/5m/6m (2m×6m aremarket standard large boards), can be cut into short sheets as needed

3. Surface classification

1. Flat (smooth): Low cost, standard access roads for construction     sites, the best choice for cost performance

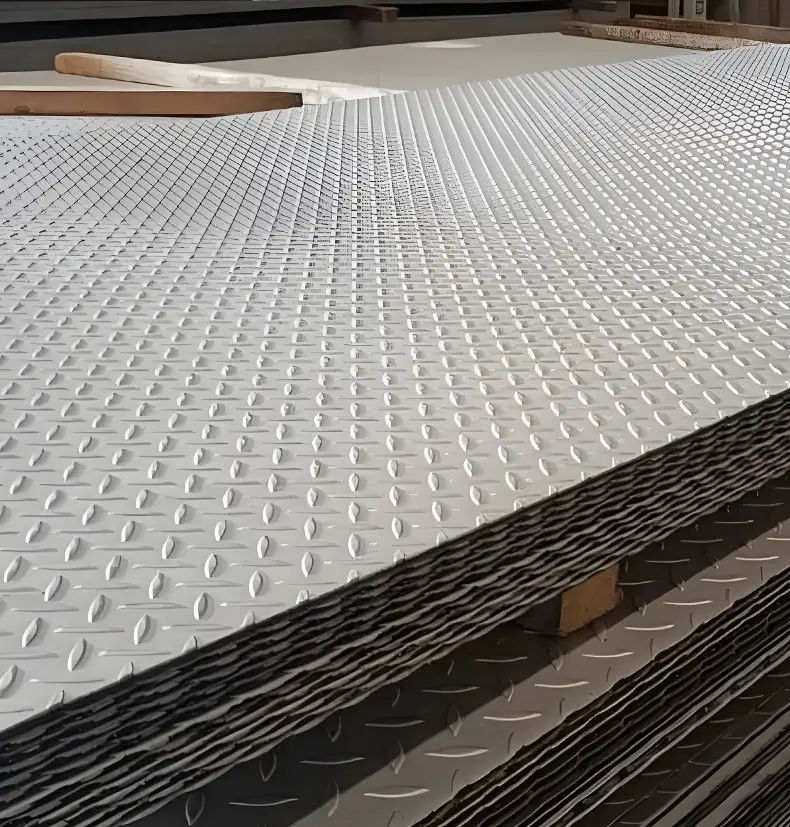

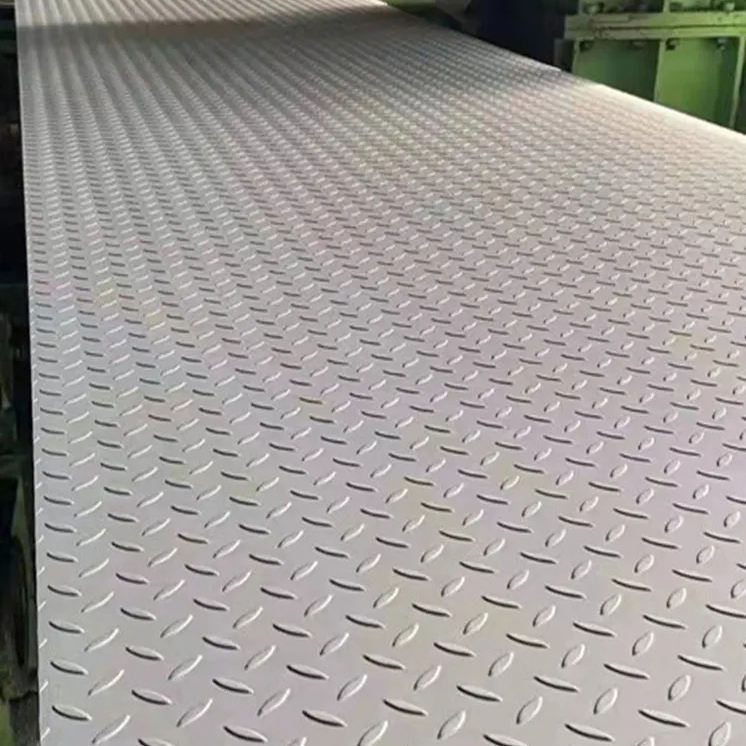

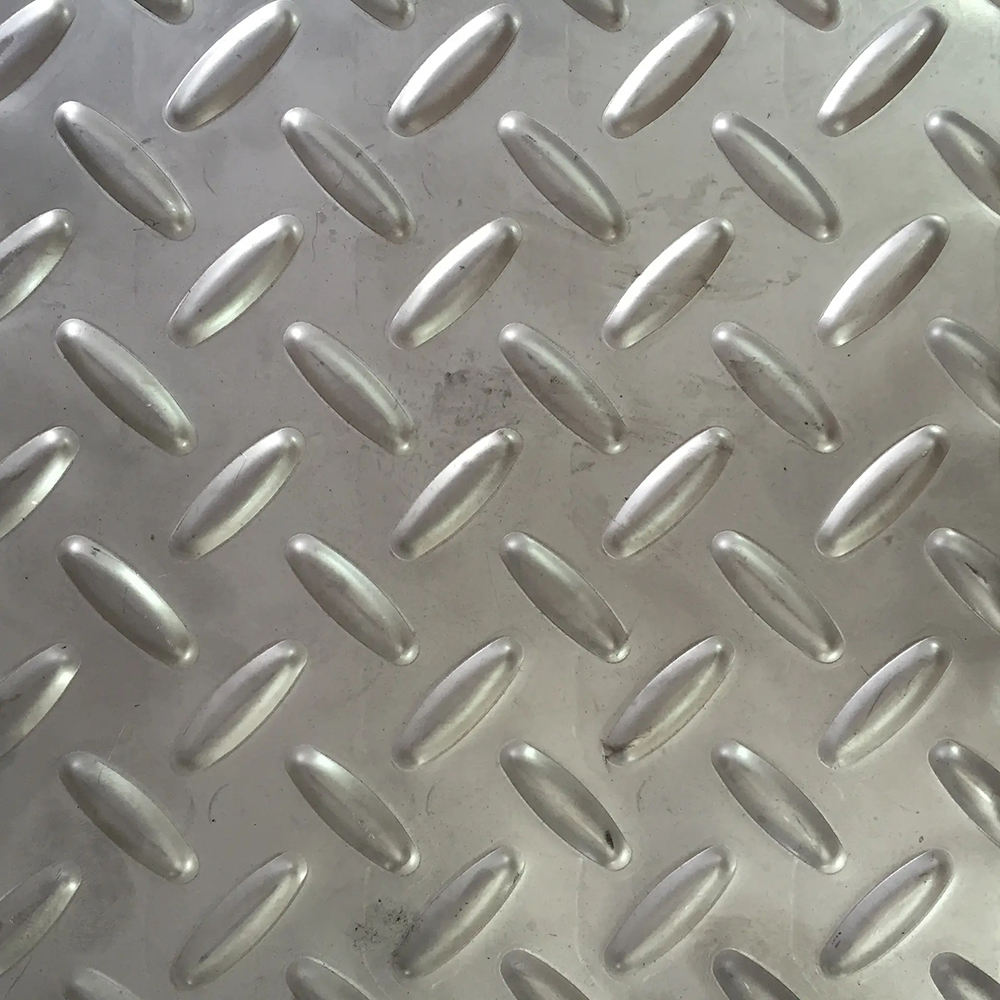

2. Patterned anti-skid board (lentil pattern / herringbone     pattern): anti-slip in rainy weather, for municipal road occupation,     pedestrian + vehicle shared sections, anti-skid pattern height 3~5mm

Most steel plate edges and corners shouldbe chamfered and deburred to prevent tire cuts and injuries

4. Applicable Scenarios

• Temporary roads for muddy construction sites in building     construction and earthworks, and anti-sinking passages during the rainy     season

• Temporary passage for municipal excavation and road occupation,     and temporary passage for pipeline network construction

• Harden the foundation pit ramps, equipment hoisting platforms,     and temporary material storage yards

• Emergency road repairs, temporary parking lots for large     exhibitions, access roads for wind power projects
